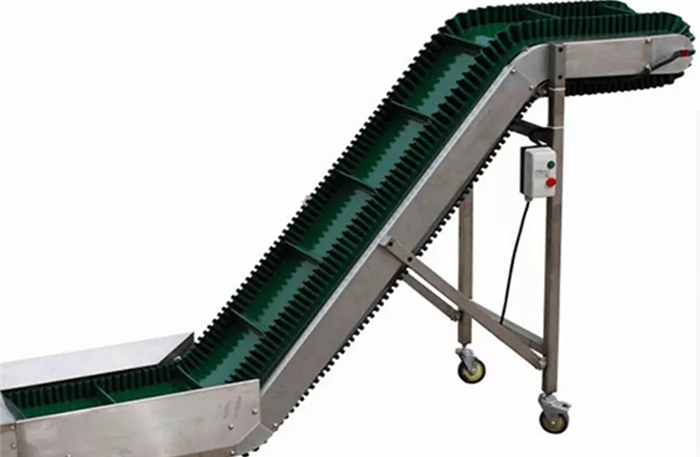

The belt conveyor with corrugated side wall and diaphragm is used,which is especially suitable for high angle conveyor. It can be widely used in coal, chemical industry ,electric power, building materials, metallurgy ,light industry, grain ,port, ship and other industries. The bulk materials with a specific gravity of 0.5~2.5t/m³

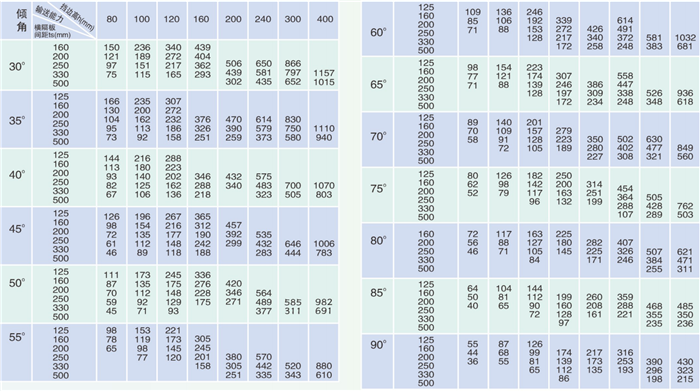

are transported in the range of -15℃~40℃. The maximum conveying capacity is 250m³/h, and the maximum particle size is 400mm. The conveying angle of the machine is within the range of 0°~90°. For materials with special requirements, such as high temperature, materials with acid, oil or organic solvent, special conveyor belt and corresponding protective measures shall be adopted.
